Ms Access Gurus

Find Record on Access form

VBA code to Find a Record on any open form or subform in Access. Often called on AfterUpdate event of Combo Box.

In this example, the first column of the unbound (no ControlSource) combobox to Find Contact in the form header isn't visible. It stores the CID, contact ID, which is the AutoNumber primary key of the table that the form is based on.

The combobox AfterUpdate event calls FindRecordN and sends the form reference (Me) and the key fieldname ("CID"). All other parameters are optional. The value to find is whatever is chosen in the ActiveControl (the combobox).

FindRecordN is also used for the "Go to Head" (contact) and "Go Back" command buttons since the table has a self-join to another contact record for the head of household or company that a contact is associated with.

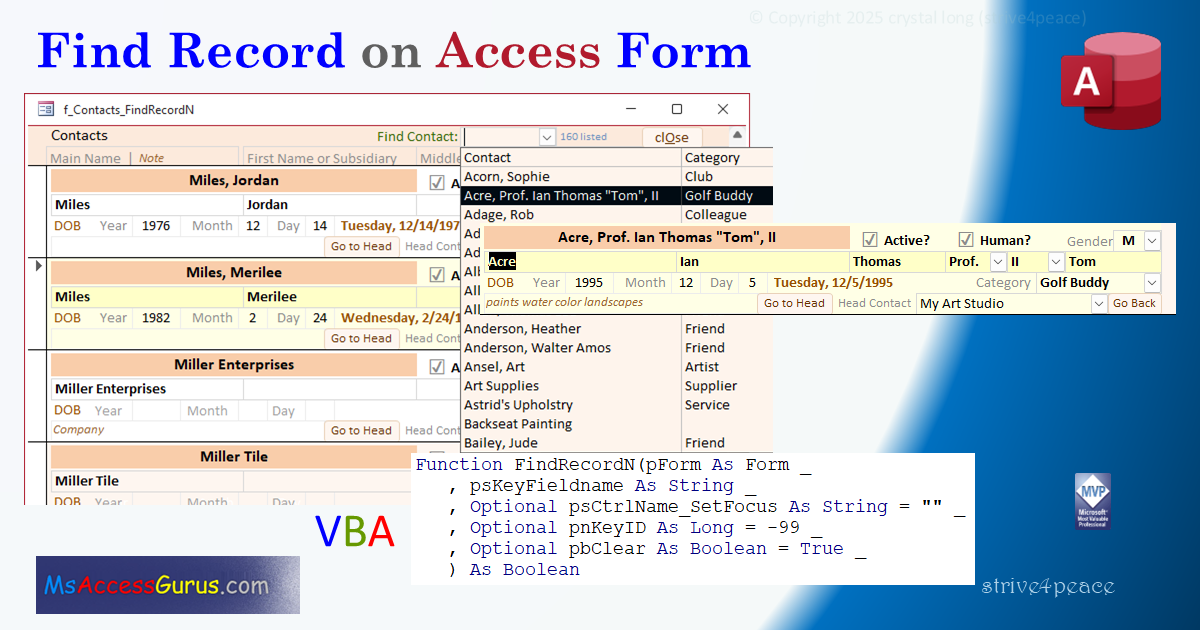

Access form with unbound combobox to find a record
			and VBA declaration for FindRecordN

Quick Jump

Goto the Very Top

Download

Example Access database file has one form, one module with FindRecordN code, and a few tables.

Example Database

FindRecordN_Contact_250901_s4p__ACCDB.zip (90 kb, unzips to an Access ACCDB database file. )

BAS file to Import with FindRecordN VBA code

mod_FindRecordN_s4p__BAS.zip (2 kb, unzips to an Access BAS file with VBA code. )

License

This may be used freely, but you may not sell it in whole or in part. You may include it in applications you develop for others provided you keep attribution, mark your modifications, and share this source link.

Remember to UNBLOCK files you download to remove the Mark of the Web. Here are steps to do that: https://msaccessgurus.com/MOTW_Unblock.htm

Goto Top

Logic

Using With pForm and End With enhances performance and makes code easier to read. Anything starting with a dot (.) between these two statements is a property or method of the passed form.

FindRecordN is often called on the AfterUpdate event of an unbound combo box or listbox to pick a record to find. In these cases, the key ID to find will be read from the active control. If the active control is Null then the code exits because there is nothing to look for. Unless pbClear is set to False, the combo box (or whatever control is active) will be cleared after the value is read.

When pnKeyID is -99, the active control has the key value to find, which is the default. So if you might want to actually find a record whose ID is -99, then modify the code to use a different number as an indicator.

If a value (other than -99) for pnKeyID is sent, then the active control does not matter, and nothing will be set to Null either. So FindRecordN can be called to find a record where the key ID to find is determined in code. It can also be used to find a record on a subform, or another open form.

In most cases, the key ID will be a Long Integer, but you can make another version where it is a string and add delimiters where necessary. Name it something like FindRecordStr. Or perhaps make a function called FindRecordWhere that takes a Where clause with anything you want.

A copy of the form recordset, the RecordsetClone, is searched for the key field being equal to the key value. If a record is found, RecordsetClone.NoMatch is False ... and Not False is True. That record is made active on the form by setting the Bookmark to be the same as the bookmark found in the RecordsetClone.

You could also search the form recordset directly (instead of using RecordsetClone). However using the clone leaves the current record active in the event what you're looking for isn't found. And its considered better practice.

If the record to find is found in the RecordsetClone, if there are unsaved changes to the record on the form (Dirty), they are saved before leaving the active record. It is a good idea to specifically save a dirty record before moving the record pointer.

If a control name to set focus to is specified, that control is made active and the code exits.

Although this is defined to be a function that returns True or False, I rarely use the return value and normally treat this like a Sub (that doesn't return a value).

Parameters

Required

Optional

Return

Returns True if the record is found or False if it isn't.

Goto Top

Examples


Use value in the active control to find a record on the form that the code is behind whose key field is named "CID".

Call FindRecordN (Me, "CID")

Use value specified by nCID, whose key field is named "CID", to find a record on the form that the code is behind. Then set focus to a control named "NoteCtc" since the notes might need to be updated.

Call FindRecordN (Me, "CID", "NoteCtc", nCID)

Find a record on a subform whose key field name is OtherID and value to find is nOtherID.

Call FindRecordN (Me.subform_controlname.form, "OtherID",, nOtherID)

Find a record on another open form whose key field name is OtherID and value to find is nOtherID.

Call FindRecordN (Forms!Formname, "OtherID",, nOtherID)

Goto Top

VBA

MODULE: mod_FindRecordN_s4p

Find a Record on any open form with a long integer primary key.

Option Compare Database
Option Explicit

' module name: mod_FindRecordN_s4p
'*************** Code Start *****************************************************
' Purpose  : Find a Record on an open form for a key field.
'              perhaps call on unbound combo or listbox AfterUpdate
' Author   : crystal (strive4peace)
' Return   : Boolean
' This code: https://msaccessgurus.com/VBA/Code/Form_FindRecordN.htm
' LICENSE  :
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Mark your changes. Use at your own risk.
'-------------------------------------------------------------------------------
'                              FindRecordN
'-------------------------------------------------------------------------------
Function FindRecordN(pForm As Form _
   ,psKeyFieldname As String _
   ,Optional psCtrlName_SetFocus As String =  "" _
   ,Optional pnKeyID As Long = -99 _
   ,Optional pbClear As Boolean = True _
   ) As Boolean
'080817 s4p, 250901
   'PARAMETERs
   '  pForm is the form to find a record on.
   '  psKeyFieldname is the name of the primary key field.
   '  psCtrlName_SetFocus is the control name
   '     to set focus to after finding.
   '  pnKeyID is the Long Integer value
   '     of the primary key value to find.
   '     If not sent, the ActiveControl value will be used.
   '  pbClear is True to clear the ActiveControl value
   '        after reading.
   '     You may not want to do this if control is a listbox.
   '     If pnKeyID is specified, no value will be cleared

   'set up Error Handler
   On Error GoTo Proc_Err

   'initialize return value to FALSE
   FindRecordN = False

   With pForm
      'if value not sent, check ActiveControl
      If pnKeyID = -99 Then
         'if nothing is picked in the active control, exit
         If IsNull(.ActiveControl) Then Exit Function
         'set value to look up by what is selected
         pnKeyID = .ActiveControl
         'clear the choice to find
         If pbClear Then .ActiveControl = Null
      End If

      'save current record if changes were made
      If .Dirty Then .Dirty = False

      'find the first value that matches
      .RecordsetClone.FindFirst psKeyFieldname _
         &  "= " _
         & pnKeyID

      'if a matching record was found, then move to it
      If Not .RecordsetClone.NoMatch Then
         .Bookmark = .RecordsetClone.Bookmark
         'DoEvents 'uncomment if necessary
         'set return value to TRUE
         FindRecordN = True
      Else
         GoTo Proc_Exit
      End If

      If psCtrlName_SetFocus <>  "" Then
         'controlname to set focus to, optional
         .Controls(psCtrlName_SetFocus).SetFocus
      End If
   End With   'pForm


Proc_Exit:
   On Error GoTo 0
   Exit Function

Proc_Err:
   Resume Proc_Exit
End Function

'*************** Code End *******************************************************

Goto Top

CODE BEHIND FORM: f_FindRecordN_Contacts

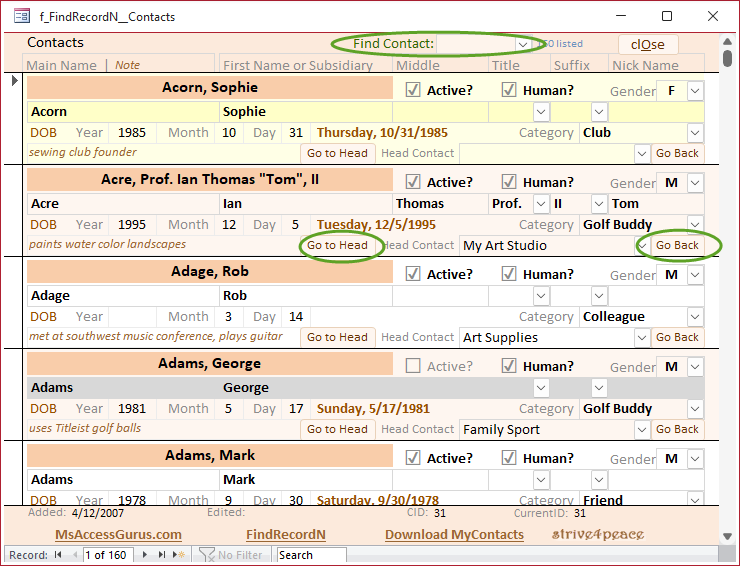

Access form with conttrols to find records.

Option Compare Database
Option Explicit
'250901
'*************** Code Start *****************************************************
' cbf: f_FindRecordN_Contacts
'-------------------------------------------------------------------------------
' Purpose  : demonstrate uses of FindRecordN
' Author   : crystal (strive4peace)
' This code: https://msaccessgurus.com/VBA/Code/Form_FindRecordN.htm
' Code List: https://msaccessgurus.com/code.htm
' LICENSE  :
'   You may freely use and share this code, but not sell it.
'   Keep attribution. Mark your changes. Use at your own risk.
'-------------------------------------------------------------------------------
'                              Find / Go to
'-------------------------------------------------------------------------------
Private Sub Find_Contact_AfterUpdate()
'250831 strive4peace
   'find record for whatever value is in the combobox
   'set focus to the MainName control after finding
   Call FindRecordN(Me, "CID", "MainName")
End Sub

Private Sub cmd_GoBack_Click()
'250831
   Dim nCID_last As Long
   'PK value of last record to go back to
   nCID_last = TempVars!tvCID_last
   If nCID_last <> 0 Then
      'before leaving record, save PK value of current record
      'to come back to
      TempVars!tvCID_last = Nz(Me.CID,0)
      'find record, set focus to the Note control
      Call FindRecordN(Me, "CID", "NoteCtc",nCID_last)
   End If
End Sub

Private Sub cmd_GotoHead_Click()
'250831
   Dim nCID As Long
   With Me.CID_  'parent contact
      nCID = Nz(.Value,0)
      If nCID = 0 Then
         .SetFocus
         MsgBox  "Choose a Head contact if you want to go there" _
            ,, "Head contact not filled"
         .Dropdown
         Exit Sub
      End If
   End With
   'store CID before moving for Go Back
   TempVars!tvCID_last = CLng(Nz(Me.CID,0))
   'find record
   Call FindRecordN(Me, "CID", "NoteCtc",nCID)
End Sub

'-------------------------------------------------------------------------------
'                              Form
'-------------------------------------------------------------------------------
Private Sub Form_Load()
'181008 strive4peace
   'sort by name
   Me.OrderBy =  "[MainName] & [NameA] & [NameB]"
   Me.OrderByOn = True
End Sub

Private Sub Form_Current()
'181012 strive4peace
   'for highlighting current record
   Me.CurrentID = Nz(Me.CID,0)
End Sub

'-------------------------------------------------------------------------------
'                              Close
'-------------------------------------------------------------------------------
Private Sub cmd_Close_Click()
'250831
   With Me
      If .Dirty Then .Dirty = False
   End With
   DoCmd.Close acForm,Me.Name
End Sub

'-------------------------------------------------------------------------------
'                              Checkboxes and textbox 'labels'
'-------------------------------------------------------------------------------
Private Sub IsACTIV_Click()
'181011 s4p
   With Me.IsACTIV
      .Value = Not .Value
   End With
End Sub

Private Sub IsACTIV_txtLabel_Click()
'181011 s4p
   With Me.IsACTIV
      .Value = Not .Value
   End With
End Sub

Private Sub IsHuman_Click()
   With Me.IsHuman
      .Value = Not .Value
   End With
End Sub

Private Sub IsHuman_txtLabel_Click()
'181011 s4p
   With Me.IsHuman
      .Value = Not .Value
   End With
End Sub

'-------------------------------------------------------------------------------
'                              Controls for Conditional Formatting
'-------------------------------------------------------------------------------
Private Sub txt_InactiveGray_GotFocus()
'250831
   'if gray background for inactive gets focus, move it
   Me.MainName.SetFocus
End Sub

Private Sub txtHighlight_Click()
'181012 s4p
   'if highlight to indicate current record gets focus, move it
   Me.MainName.SetFocus
End Sub

'-------------------------------------------------------------------------------
'                              drop combo lists
'-------------------------------------------------------------------------------
Private Sub Find_Contact_MouseUp( _
   Button As Integer,Shift As Integer _
   ,X As Single,Y As Single)
'250831
   Call DropMe
End Sub

Private Sub Title_GotFocus()
'250831
   Call DropMeIfNull
End Sub
Private Sub Title_MouseUp( _
   Button As Integer,Shift As Integer _
   ,X As Single,Y As Single)
'250831
   Call DropMeIfNull
End Sub

Private Sub Sufx_GotFocus()
'250831
   Call DropMeIfNull
End Sub
Private Sub Sufx_MouseUp( _
   Button As Integer,Shift As Integer _
   ,X As Single,Y As Single)
'250831
   Call DropMeIfNull
End Sub

Private Sub CatID_GotFocus()
'250831
   Call DropMeIfNull
End Sub
Private Sub CatID_MouseUp( _
   Button As Integer,Shift As Integer _
   ,X As Single,Y As Single)
'250831
   Call DropMeIfNull
End Sub

Private Sub Gender_GotFocus()
'250831
   Call DropMeIfNull
End Sub
Private Sub Gender_MouseUp( _
   Button As Integer,Shift As Integer _
   ,X As Single,Y As Single)
'250831
   Call DropMeIfNull
End Sub

Private Sub CID__GotFocus()
'250831
   Call DropMeIfNull
End Sub
Private Sub CID__MouseUp( _
   Button As Integer,Shift As Integer _
   ,X As Single,Y As Single)
'250831
   Call DropMeIfNull
End Sub

Private Function DropMeIfNull( _
   ) As Boolean
' s4p, Drop list for Combo Box if no value
   'usually used for a Combo Box
   'so if nothing is filled, the list will drop
   On Error Resume Next
'   With Screen.ActiveControl
   With Me.ActiveControl
      If IsNull(.Value) Then .Dropdown
   End With
End Function

Private Function DropMe()
's4p. Drop list for Combo Box
   On Error Resume Next
'   Screen.ActiveControl.Dropdown
   Me.ActiveControl.Dropdown
End Function

'*************** Code End *******************************************************
' Code was generated with colors using the free Color Code add-in for Access

Goto Top

Reference

Download MyContacts, a free Access database for managing personal contact information.

Goto Top

Share with others

here's the link to copy:

https://msaccessgurus.com/VBA/Code/Form_FindRecordN.htm

or, in older browsers,
http://msaccessgurus.com/VBA/Code/Form_FindRecordN.htm

Goto Top

Back Story

This handy procedure makes it quick and easy to implement functionality to find records. Pass a reference to any form or subform that's open. FindRecordN is generally used several times in Access projects that I develop or help others to develop.

The "N" at the end of FindRecordN means that it expects a number for the key value — and specifically, a long integer.

Do you like those big checkboxes? And "labels" that are bold or not using conditional formatting? Have a look to see how it's done ... hint: look at the Format code on the property sheet too.

Goto Top
